Product Details

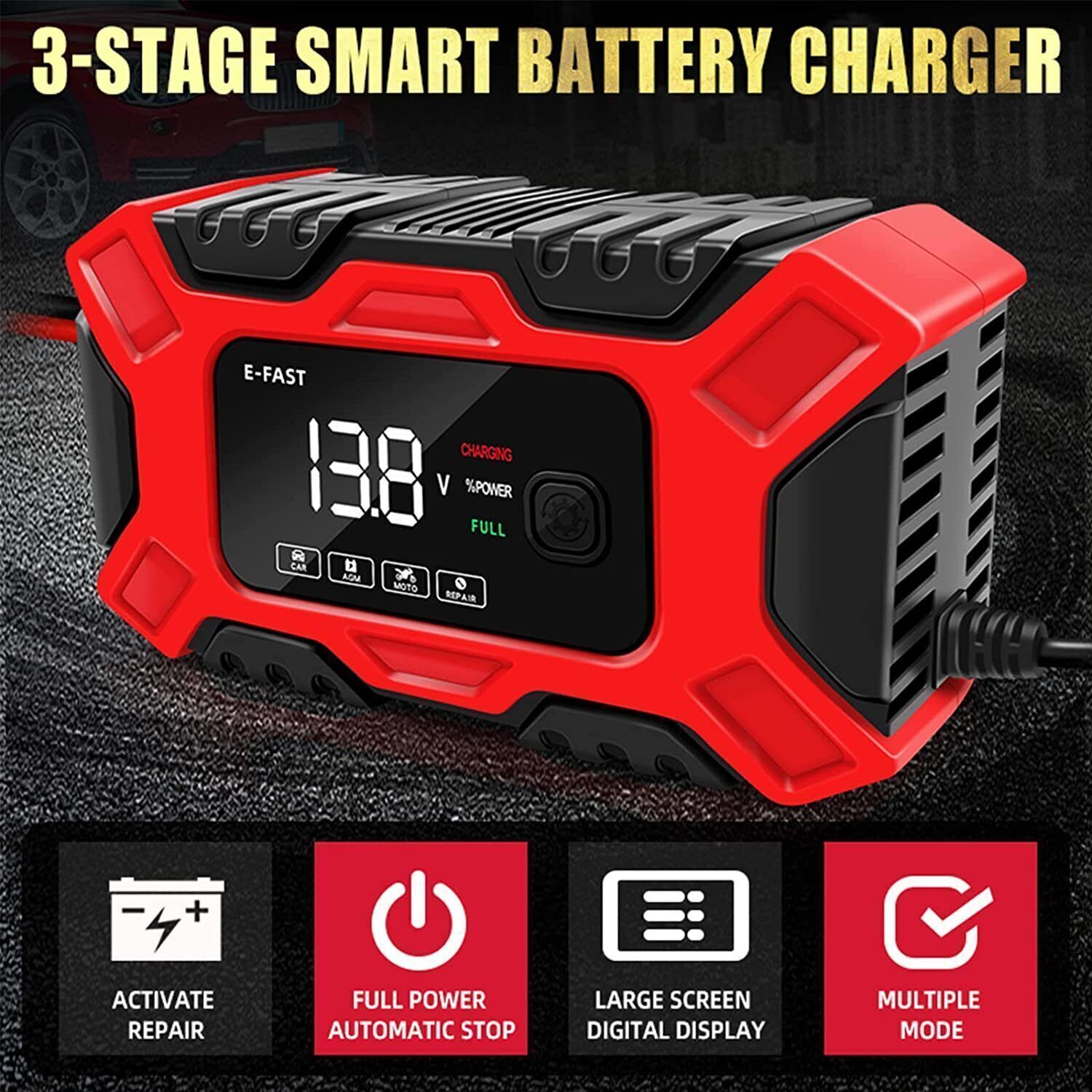

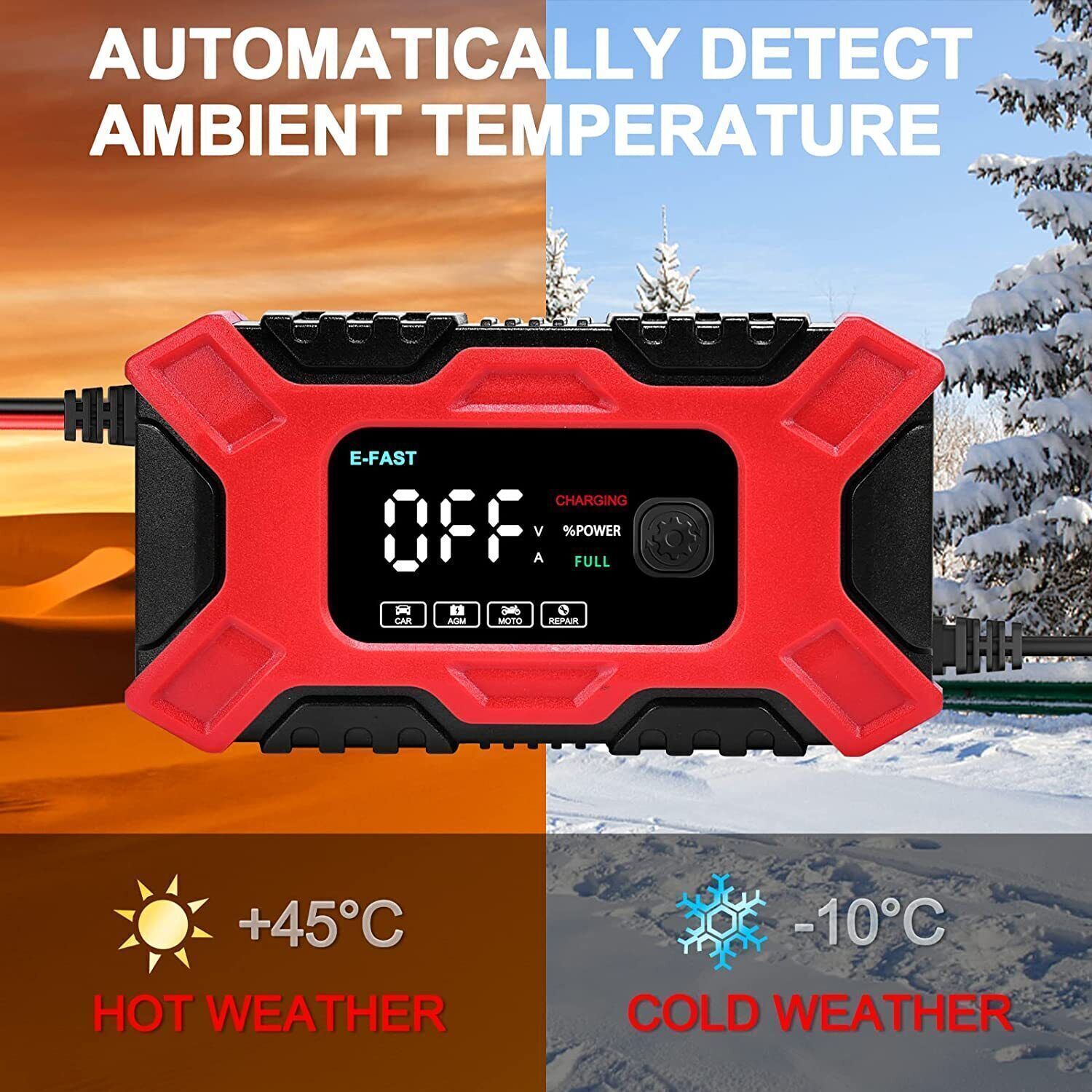

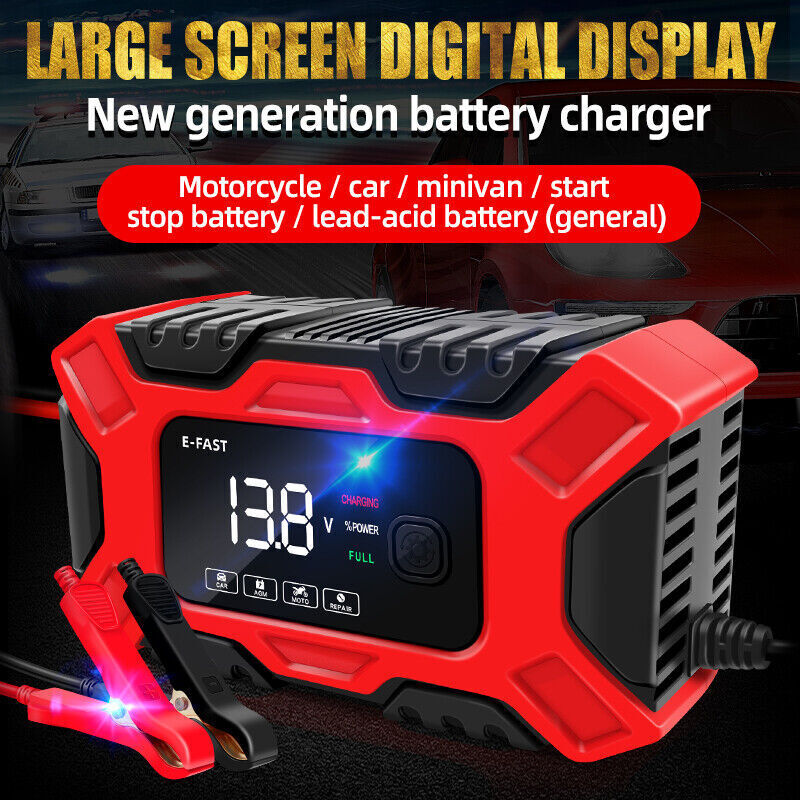

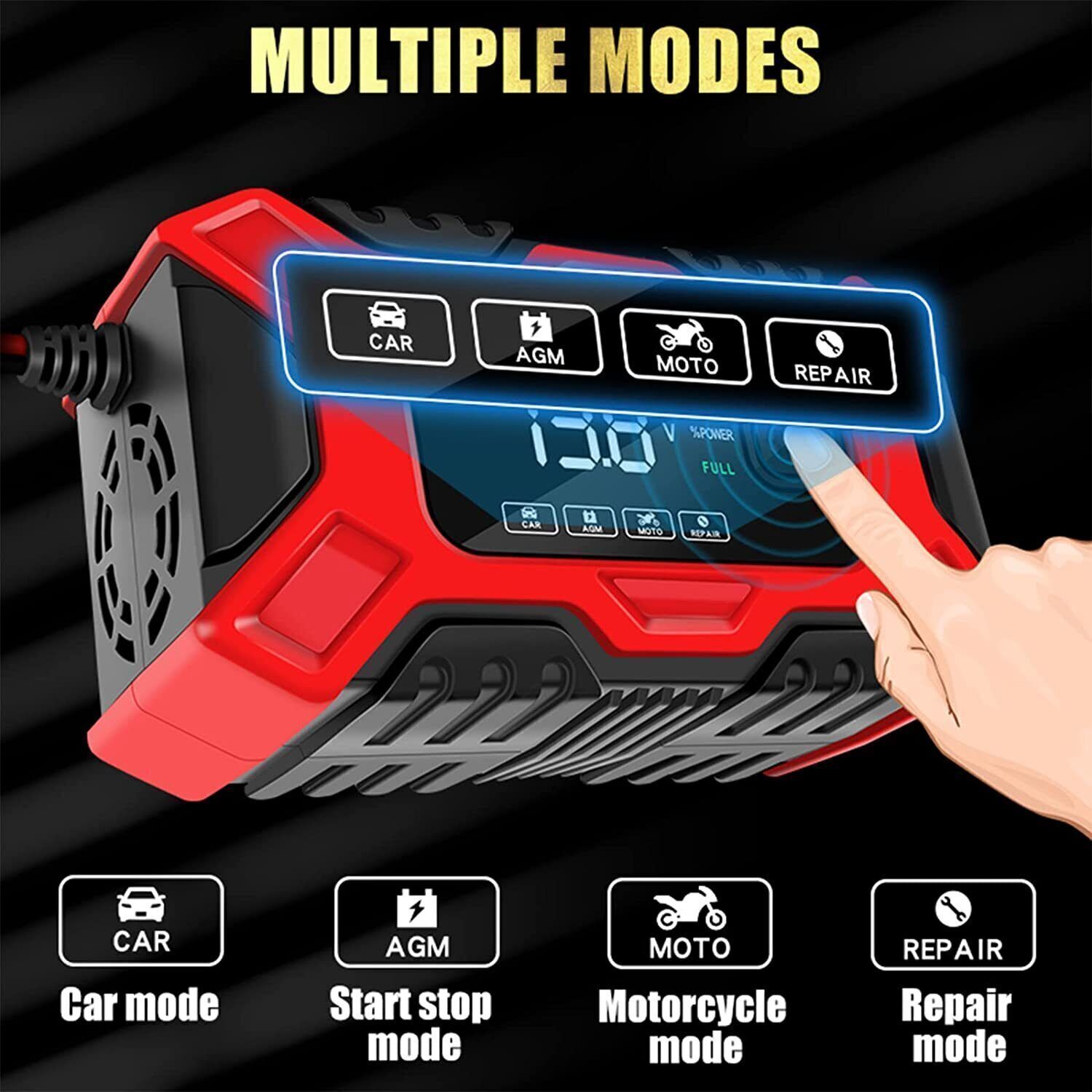

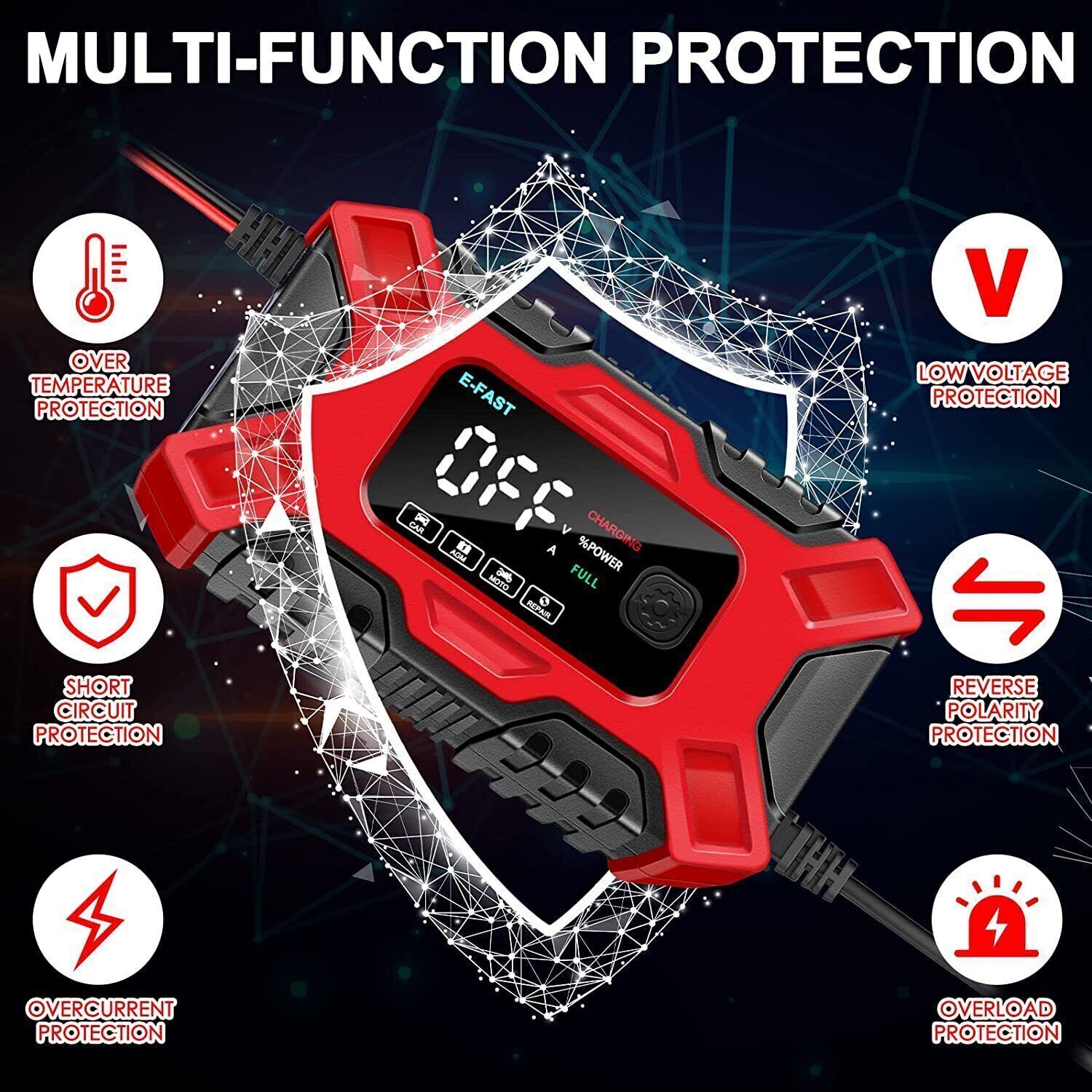

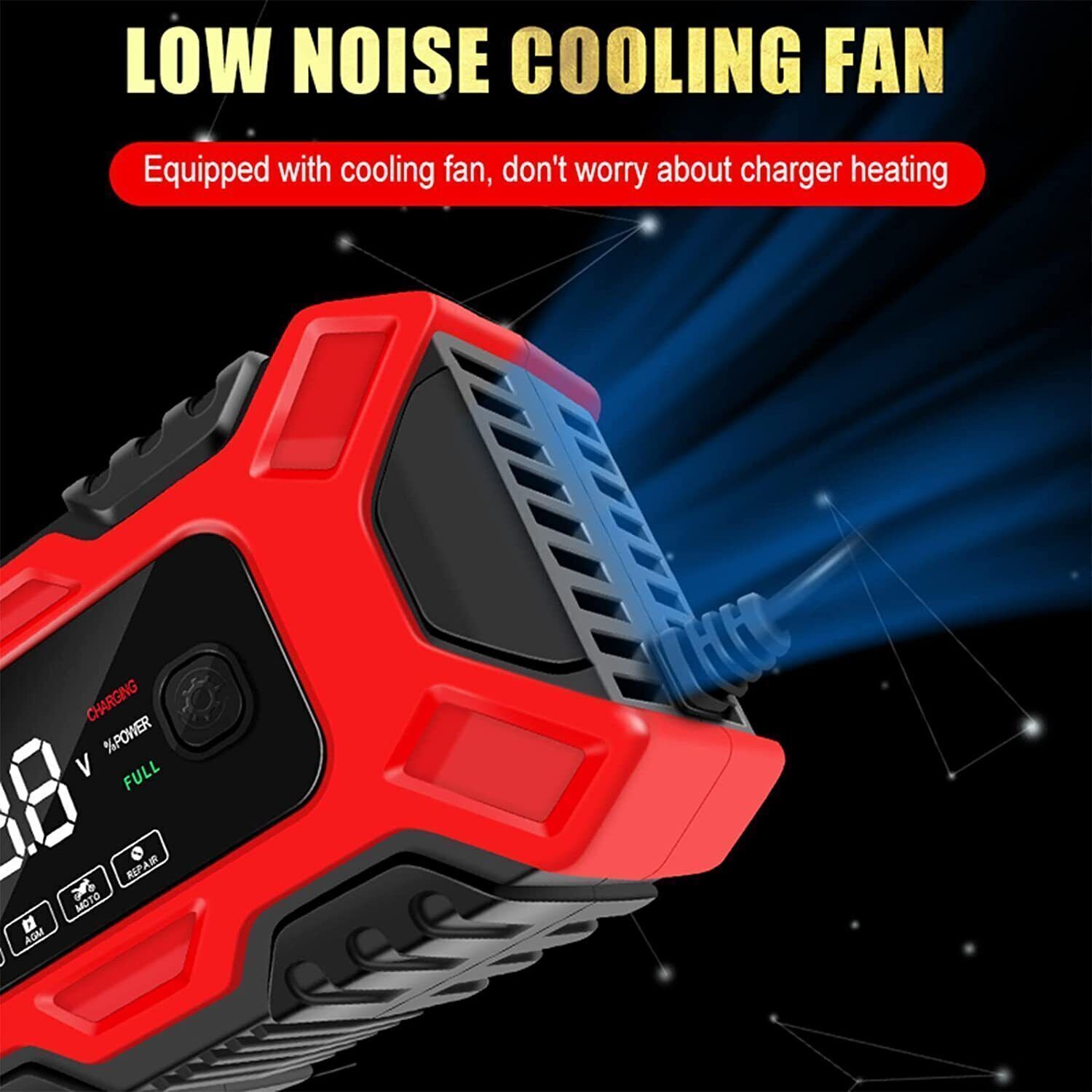

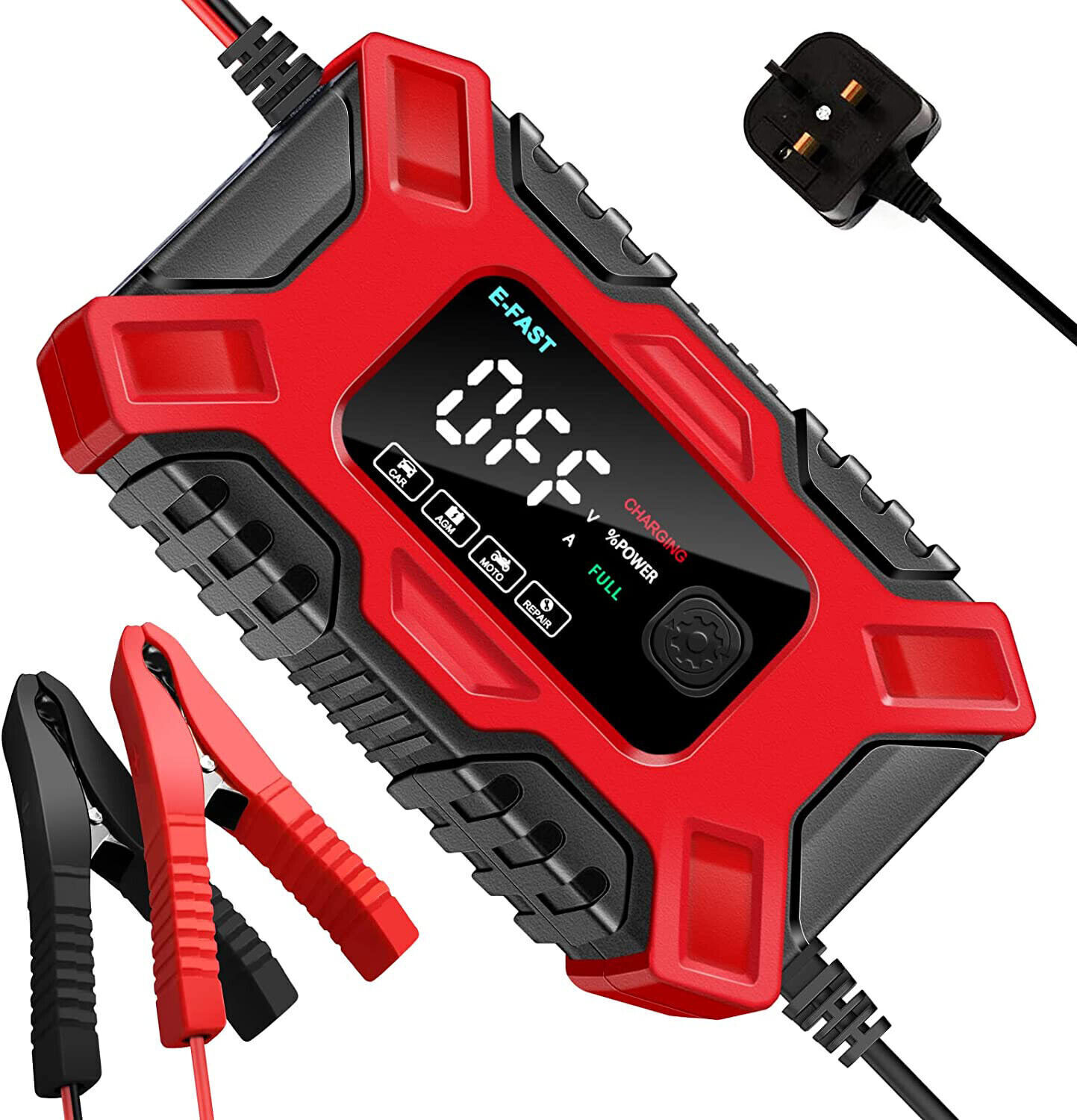

6-Amp Battery Charger with Battery Recovery Function This car battery charger incorporates various safety features—such as reverse polarity, short-circuit, overcharge, over-temperature, and over-current protection, along with other smart settings—to effectively ensure the safety of both the charger and the battery. It also features memory functions, battery status detection, touch controls, and other user-friendly settings to make charging faster and more convenient. Equipped with a pulse repair function, the charger can revive lead-acid batteries that fail to charge due to mild sulfation; the pulse repair mode reduces sulfation to some extent, allowing normal charging to resume. Scope of Application. Battery Type: Suitable for lead-acid batteries requiring a charging voltage of DC 14.2–14.9V (in 12V mode). Charging ternary lithium batteries or batteries requiring voltages outside this range is strictly prohibited. Operating Voltage: Compatible with AC 100–240V, 50/60Hz power supplies. Operating Temperature: Suitable for use in environments ranging from -10°C to +45°C. Altitude: Suitable for use at altitudes up to 4,000 meters. Cooling Fan & Smart Chip Precautions Before charging, inspect the battery for damage, fluid leakage, or other abnormalities; proceed with caution if any issues are detected. Do not charge in environments with flammable gases or vapors. Avoid charging in areas with high temperatures or high humidity. Do not cover the battery surface while charging; ensure the battery is placed upright and level, not tilted. If there is an excessive buildup of sulfide material on the positive and negative battery terminals, remove the sulfide deposits first to ensure optimal charging. If the battery voltage is very low, perform a repair procedure before charging. Connect the charger output to the battery using a one-handed technique: attach the black clip to the negative terminal first, then attach the red clip to the positive terminal. Output short-circuit and reverse-connection protection: The device features output short-circuit and reverse-polarity detection (reverse connection is detected within 1–2 seconds; if a reverse connection or short circuit is detected, the LCD displays "ERO," and the detection process itself does not damage the unit). Additionally, thanks to microprocessor control, there is no sparking upon connection. Battery power detection: Without connecting to AC input power, simply attach the battery clamps to the positive and negative terminals (red for positive, black for negative) to view real-time battery voltage and current parameters. (Digital display: cycles between voltage and ambient temperature; charge level shown as a percentage based on detected data; initial power-up involves a 6-second self-test sequence displaying temperature, then cycling between temperature and voltage.) Winter and Summer modes: During charging, the device detects ambient temperature and adjusts the charging state to ensure battery longevity and safety. Winter mode displays a snowflake icon; Summer mode displays a sun icon (features specific to Auto mode; not available in other modes). Over-temperature protection: The device includes an over-temperature protection function; if the temperature becomes too high, the protection program activates. Charging resumes at the previous state once the temperature returns to normal levels. Overcharge protection: The device features overcharge protection to prevent overcharging—which can reduce battery lifespan—and to enhance charging safety (standard maximum charging time: 15.5–16.0 hours). Battery charge progress bar: Displays charging progress as a percentage, reaching 100% when fully charged. Easy to use; beginner-friendly. Step 1 Attach the output alligator clips to the battery terminals (red for positive, black for negative). Step 2 Plug the charger's AC input cord into the power outlet, turn on the power switch, select the mode, and begin charging. Step 3 When the charger... If "FUL" is displayed, it indicates that the charging process is complete; at this point, disconnect the AC input and observe the battery capacity status after 10 seconds (the LCD cycles between displaying voltage and battery power) to confirm that it...
